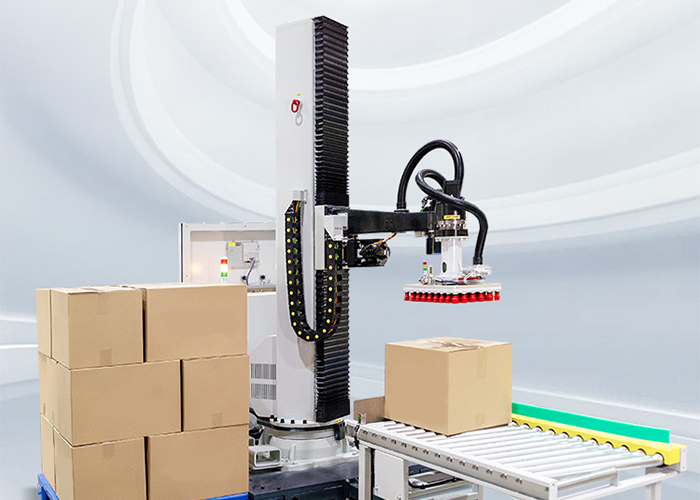

30KG Collaborative Palletizer
Load capacity: 30KG, reach 1800mm, palletizing speed 8–10 cycles/min, double-box grabbing available on request. Stacking height ranges from 300–2400mm. Integrated base with casters for easy movement, only 6㎡ footprint for double pallet station, power 3.3KW. No safety fence required, safe human-machine collaboration. Designed for carton palletizing, fits 1200×1200mm pallets. Compact and flexible, ideal for factories with limited space
50KG Movable Cast Manipulator Palletizer
Load capacity: 50KG, reach 2000mm, stacking height 1600–2300mm. Cast structure with carbon steel painting, power 7KW, 380V power supply. Compatible with multiple pallet sizes, mainly for carton palletizing. Movable design, available for elevator transport and second-floor installation. Stable and cost-effective for small & medium factories.
70KG Cast Column Palletizer
Load capacity: 70/100/150KG, palletizing speed 7–9 cycles per minute, reach 2000mm, stacking height 1600–1800mm. Equipped with Inovance servo, Chint electrical components and Zhongda reducer. Suitable for cartons, film packs, woven bags and barrels, compatible with multiple pallet sizes. Solid cast structure, ideal for medium & small production lines to realize automatic palletizing.

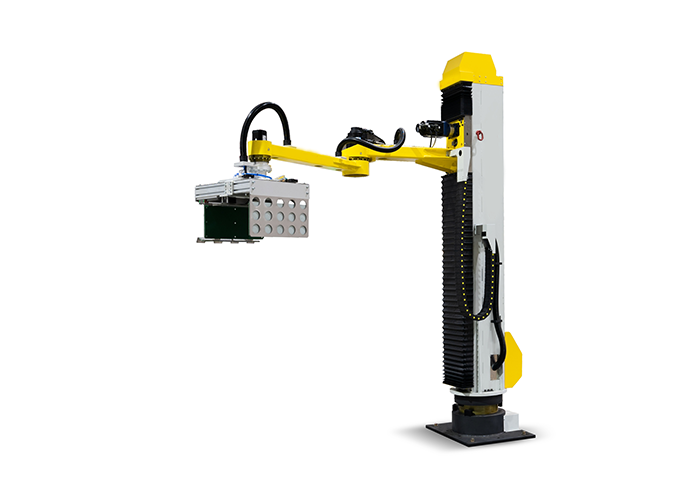

Column Palletizer WEX-1800-100KG/150KG
WEX-1800 series column palletizer is an economical self-integrated palletizing solution, available in 100KG/150KG load versions with stable palletizing speed of 6–10 cycles per minute.
It handles cartons, film-wrapped goods, woven bags, large barrels and other products, with optional suction cup or clamping gripper. Pallets can be manually placed or automatically fed.
Standardized mass production brings competitive pricing. Ideal for automation upgrading of medium and small factories, it realizes automatic palletizing, reduces labor input and improves production efficiency.
Column Palletizer WEX-1800-70KG/130KG/180KG
WEX-1800 series column palletizer is an economical self-integrated palletizing solution, available in 70KG/130KG/180KG load versions with stable palletizing speed of 6–10 cycles per minute. It handles cartons, film-wrapped goods, woven bags, large barrels and other products, with optional suction cup or clamping gripper. Pallets can be manually placed or automatically fed.Standardized mass production brings competitive pricing. Ideal for automation upgrading of medium and small factories, it realizes automatic palletizing, reduces labor input and improves production efficiency.

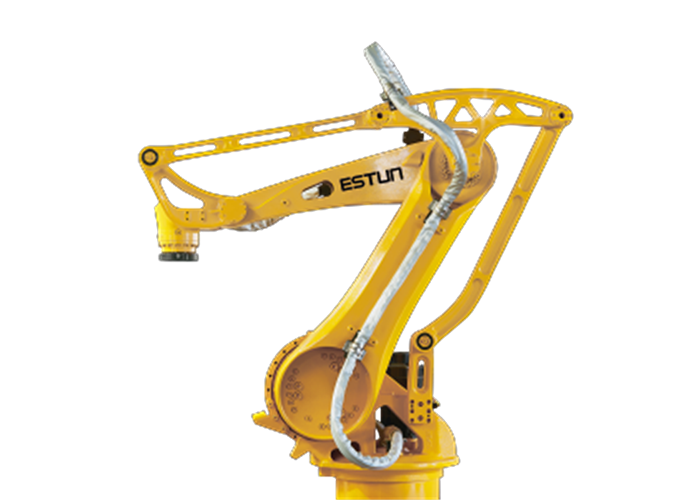

Estun Palletizer ESTUNER180
This ESTUN ER180 Robotic Palletizer adopts high-quality ESTUN robot body, serving as a medium-speed & medium-load palletizing solution with a palletizing speed of 10–15 cycles per minute and maximum load of 180KG. Designed with standardized and modular structure, it delivers high-efficiency and precise palletizing with a repeat positioning accuracy of ±0.2mm. Specially designed for carton products and compatible with various sizes of cartons and pallets. It is widely used in chemical, food, beverage, beer, plastic, air-conditioning and other industries for automatic palletizing of finished cartons. Safety guardrail is standard or customizable. It helps factories build automated production lines, cut labor costs and improve overall productivity.

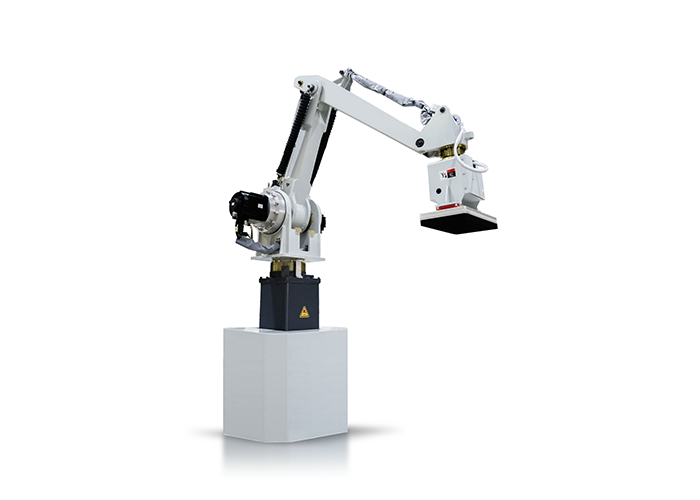

Moveable Palletizer WEX-2000-50
WEX-2000-50 compact column palletizer is a lightweight economical model with 50KG load capacity and speed of 10–15 cycles per minute. It adopts Inovance servo, Schneider components and Zhongda reducer with standardized modular design. Compact structure, optional moving wheels support elevator transport and second-floor installation. Equipped with suction gripper for cartons, pallets loaded manually. Ideal for small and medium factories to realize automatic carton palletizing and save labor cost.

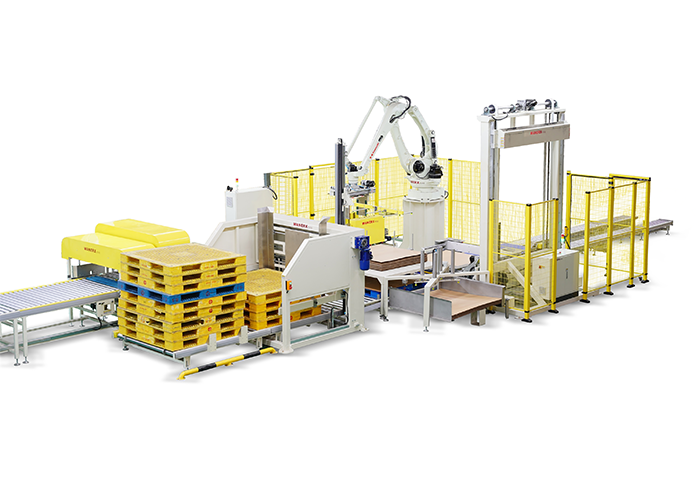

Palletizer Kawasaki CP130-180L
This Kawasaki CP130/180L Robotic Palletizer is equipped with original Kawasaki robot arm, serving as a large high-speed palletizing solution. It achieves a palletizing speed of 15–22 cycles per minute with optional load capacity of 130KG / 180KG. Built with standardized and modular design, it ensures efficient and stable palletizing with repeat positioning accuracy of ±0.5mm. Optimized for carton products and compatible with various sizes of cartons and pallets. Widely deployed in chemical, food, beverage, beer, plastic, building materials and other industries for automatic palletizing of finished cartons. Safety guardrail is standard and customizable. It facilitates intelligent automation of production lines, greatly lowering labor costs and boosting overall output.
Palletizer WEX-XMD-001
WEX-XMD-001 column palletizer features 150KG load capacity with palletizing speed of 6–10 cycles per minute and ±0.5mm repeat accuracy.Equipped with Inovance servo, Schneider components and Zhongda reducer, it adopts standardized modular design for stable operation.Fitted with clamping gripper for cartons, compatible with various carton and pallet sizes. Safety guardrail is standard and customizable.Cost-effective choice for automatic carton palletizing to reduce labor cost.

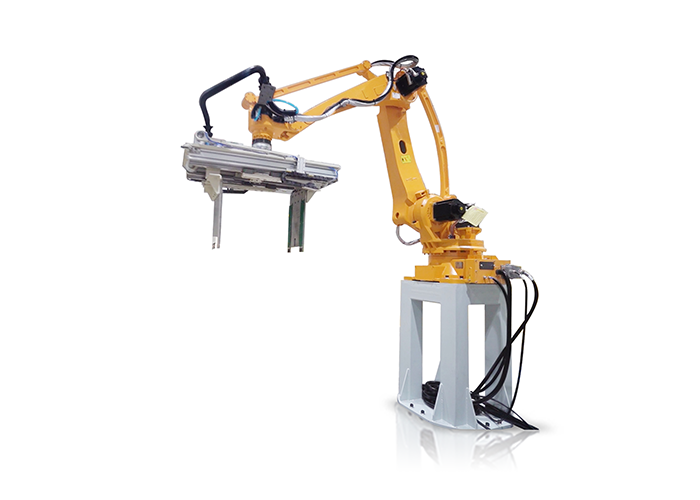

Robotic palletizer ER-120-2400-180+3060
The large-scale robotic palletizer is a highly intelligent packaging system primarily composed of a large robotic arm, advanced control system, sensors and gripper. Featuring robust gripping and load-bearing capabilities, it automatically performs large-scale product picking, palletizing and positioning. Typically deployed on high-output mass-production lines, the equipment greatly improves productivity and lowers labor costs while guaranteeing stable products and consistent packaging quality. Widely used across industries including logistics, automotive, electronics and building materials, it delivers strong support for enterprises pursuing intelligent and automated production. Its advanced technology and flexibility make it an indispensable part of modern production lines.
Column palletizer
Tailor-made for scenarios with multiple product categories and diverse distribution routes, the Automatic Picking Wall is a cutting-edge automatic 3D sorting solution that redefines warehouse operations—you can adjust the number and size of its storage slots based on customer demands, product features, and warehouse space to fit different goods and layouts.
