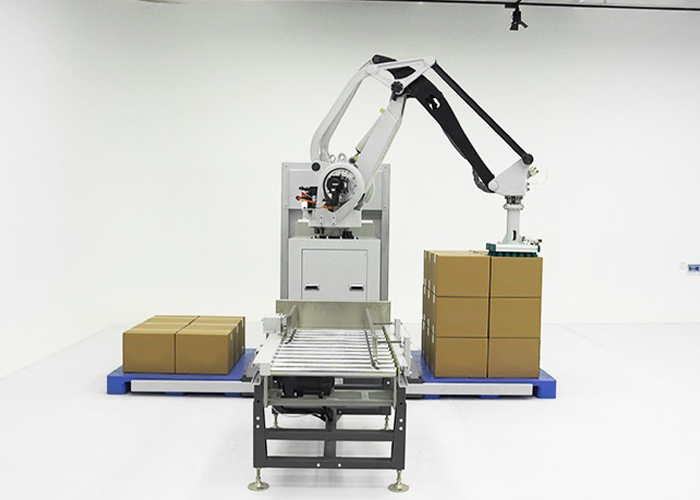

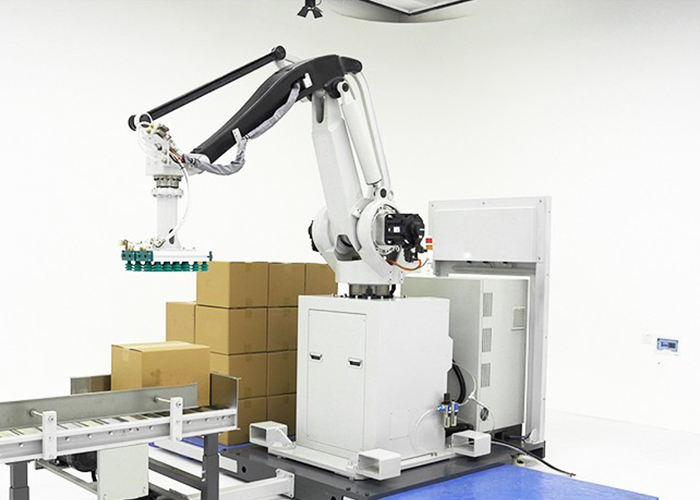

50KG Movable Cast Manipulator Palletizer
Category Palletizer
Load capacity: 50KG, reach 2000mm, stacking height 1600–2300mm. Cast structure with carbon steel painting, power 7KW, 380V power supply. Compatible with multiple pallet sizes, mainly for carton palletizing. Movable design, available for elevator transport and second-floor installation. Stable and cost-effective for small & medium factories.
Specification
Specification
| Machine Model | 50KG Mobile Palletizer |
| load | 50KG |
| Working radius | 2000mm |
| Total height of equipment | 2968mm |
| Pallet height | off the ground 1600-2300mm |
| Body material | Carbon steel baking paint |
| Equipment weight | 980KG |
| Equipment power | 7KW |
| Applicable power supply | 380v 50HZ |
| Applicable pallet sizes | L800-1200*W800*1200*150-200(mm) |
