Vertical Carton Erector GKL‑412
Category Carton Erector

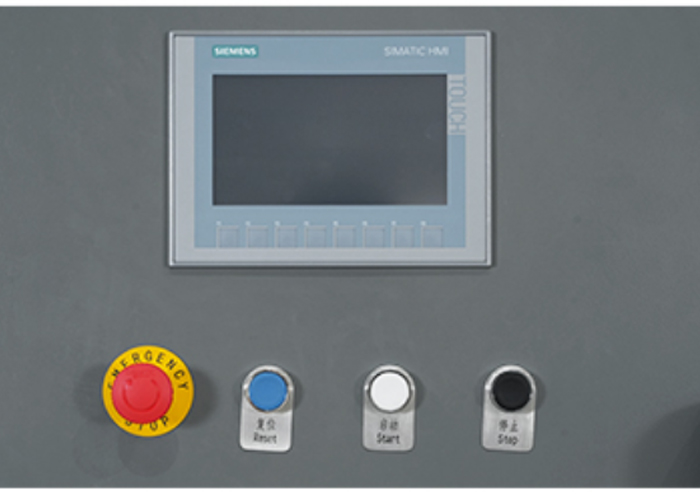

GKL-412 Vertical Case Unpacker automatically completes the whole process of box suction, case forming, bottom folding and tape sealing. Its unpacking speed reaches 10-12 cases per minute. The vertical box storage allows box replenishment without shutdown. Compact-structured and equipped with PLC control system, the machine runs stably. It can work standalone or connect to automatic packaging production lines, widely used in e-commerce, food, daily-chemical and other industries.
Specification
Specification
| Machine Model | GKL-412 |
| Carton Opening Speed | 10-12ctns/min |
| Carton Size | L250-450mm*W150-400mm*H100-400mm |
| Power Supply | 220V 50/60Hz 1 Phase |
| Power | 240W |
| Adhesive Tape Width | 48mm/60mm/75mm |
| Carton Storage Quantity | 80-100pcs (800-1000mm) |
| Air Consumption | 450NL/min |
| Required air pressure | 6kg/cm³ |
| Table Height | 620-670mm |
| Machine Size | L2350×W2100×H1650mm |
