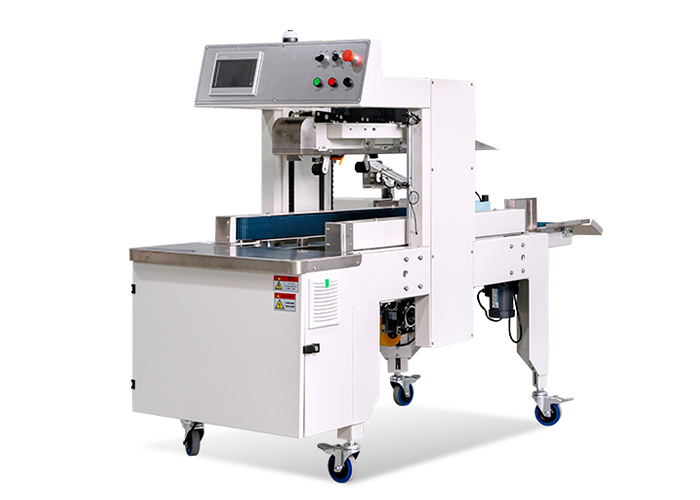

Integrated Carton Sealing and Labeling Machine GPETB3530-A
This integrated carton sealing and labeling machine combines adaptive sealing, print-and-apply labeling, and label verification functions into a single unit. Utilizing pressure-sensitive tape for sealing, it automatically adjusts to carton dimensions and completes the sealing, labeling, and verification processes in one pass, effectively reducing labor requirements by two to three positions. Powered entirely by electricity, it eliminates the need for air compressors and frequent drainage maintenance, resulting in a 40% reduction in maintenance costs. It can operate as a standalone unit or be integrated with case-erecting equipment. Ideal for industries such as food, e-commerce, personal care, electronics, and toys, it serves as an optimal all-in-one sealing and labeling solution.
| Machine Model | GPETB3530-A |
| speed | 8/min |
| Carton Size | L120-500mm W60-350mm H90-280(Carton length > Carton height) |
| Power Supply | 220V 50Hz 1Phase |
| Power | 1500 W |
| Adhesive Tape Width | W:40mm Inner diameter 75 mm, outer diameter ≤250 mm |
| Label size | Roll labels 76×130 mm, 70×100 mm |
| Core size | Inner diameter greater than 38 mm and outer diameter less than 200 mm |
| Table Height | 700–850 mm (adjustable height) |
| Machine Size | L1950mm W1300mmH1450-1650mm |
| Machine Weight | 320kg |
