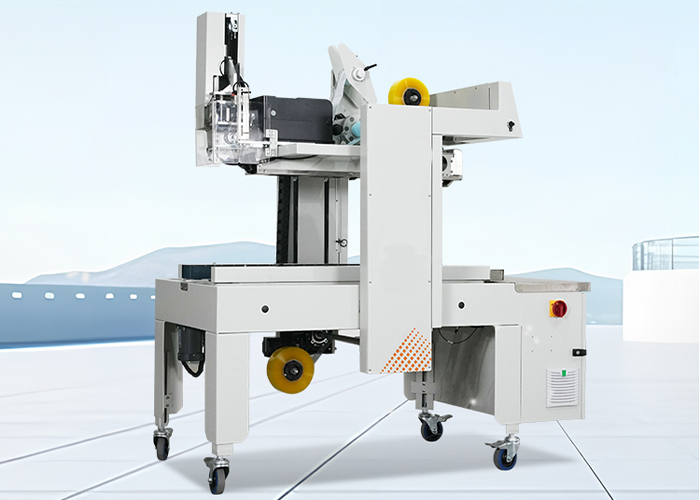

Integrated Carton Sealing and Labeling Machine GPETB-36

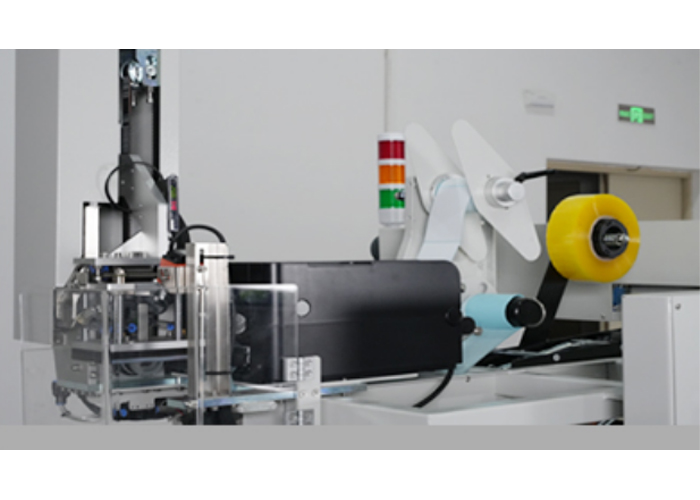

This integrated carton sealing and labeling machine combines adaptive sealing, print-and-apply labeling, and label verification functions into a single unit. Utilizing pressure-sensitive tape for sealing, it automatically adjusts to carton dimensions and completes the sealing, labeling, and verification processes in one pass, effectively reducing labor requirements by two to three positions. Powered entirely by electricity, it eliminates the need for air compressors—thereby removing the requirement for frequent condensate drainage and maintenance—and reduces maintenance costs by 40%. It can operate as a standalone unit or be integrated with case-erecting equipment. Ideal for industries such as food, e-commerce, personal care products, electronics, and toys, it serves as an optimal all-in-one solution for sealing and labeling.
| Machine Model | GPETB-36 |
| speed | 6-8/min |
| Carton Size | L150-500mm W80-360mm H60-360(Carton length > Carton height) |
| Power Supply | 220V 50Hz 1Phase |
| Power | 1500 W |
| Adhesive Tape Width | W:48mm Inner diameter 75 mm, outer diameter ≤250 mm |
| Label size | Roll labels: 70×100, 76×130, 100×150 mm (can be converted to fan-folded labels) |
| Core size | Inner diameter greater than 38 mm and outer diameter less than 280 mm |
| Table Height | 700–850 mm (adjustable height) |
| Machine Size | L1600mm W865mmH1750+150mm |
| Machine Weight | 300kg |
