Full Automatic Rigid Box Making Machine (Fruit box machine) JZH-1000

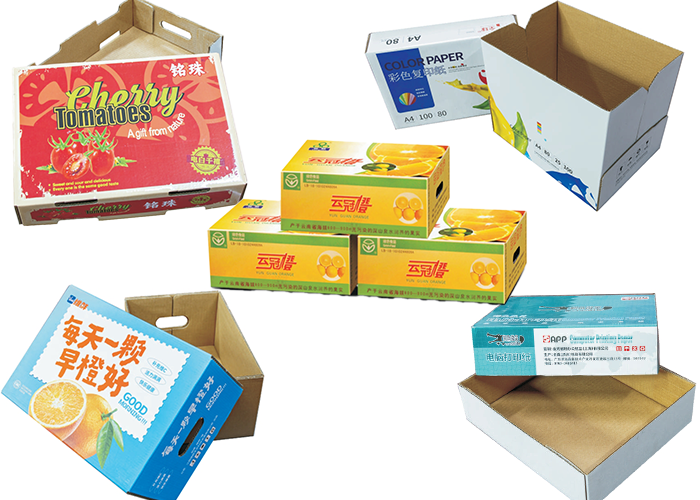

The machine is mainly used for the production and processing of various outer packaging boxes and cartons, and is suitable for food packaging, fruits and vegetable packaging.
Specification
Specification
- Imported intelligent spray adhesive system, automaticspray adhesive compensation function;

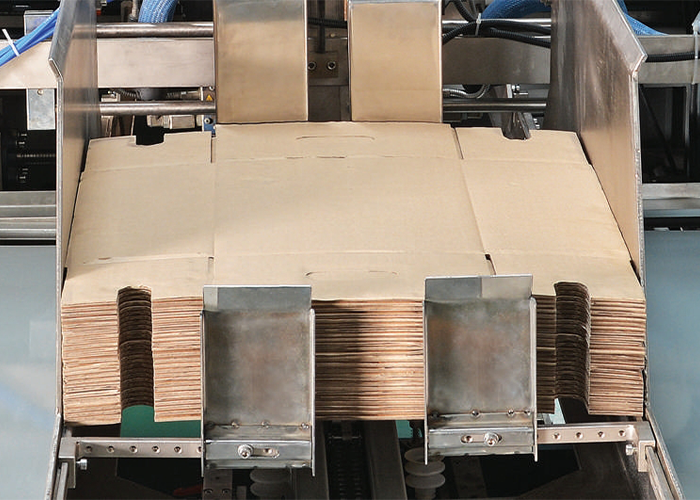

- Vacuum suction type automatic paper feeding, tandemwinding into the paper folding into the forming oper-ation is completed a one-time;

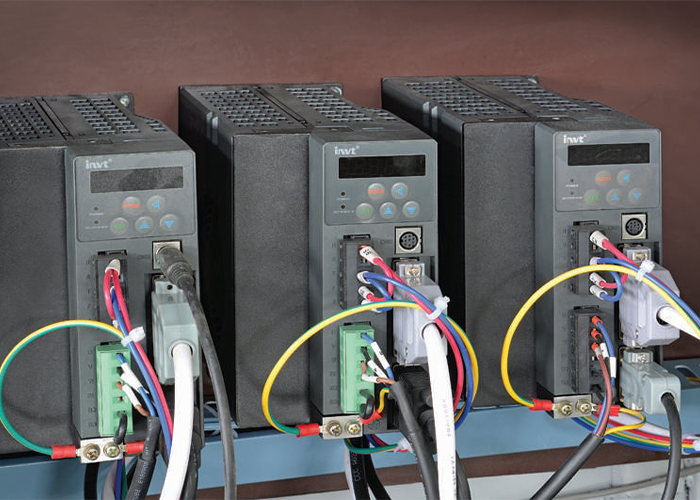

- PLC programmable controller, photoelectric trackingsystem, gas detection system, touch screen manma-chine interface operation, the implementation of theheavens and the earth cover carton forming processautomation;
- Automatically push board before and after coating,reduce light magic eye irradiation error of cardboard,glue more accurately.
- Infrared safety protection system, to ensure safeoperation;
- Automatic fault diagnosis function;
- Fast changing mould adjusting device;
- And frame cage design, the overall processing,packet type;
- The machine cover an area of an area small, stability.
Machine Model JZH-1000 Thickness of cardboard Min：1.5mm,Max：7mm Power 380V/50Hz Noise ≤100dB Speed 2000-3500 Pieces/hours Cardboard stacking height 300-500mm Stacked weight 20kg Total power ≈12kw Glue capacity 8L /10L Air source 380L/Minute Air pressure 0.6-0.7MPa Machine weight ≈1600kg Dimensions 3900x1630x2550mm Packaging Boxes Specifications Carton size (L=Length; W=Width; H=Hight) L Min.size 220mm L Max.size 680mm W Min.size 220mm W Max.size 680mm H Min.size 100mm H Max.size 250mm Package Size (L=Length; W=Width) L Min.size 450mm L Max.size 1000mm W Min.size 450mm W Max.size 1000mm
