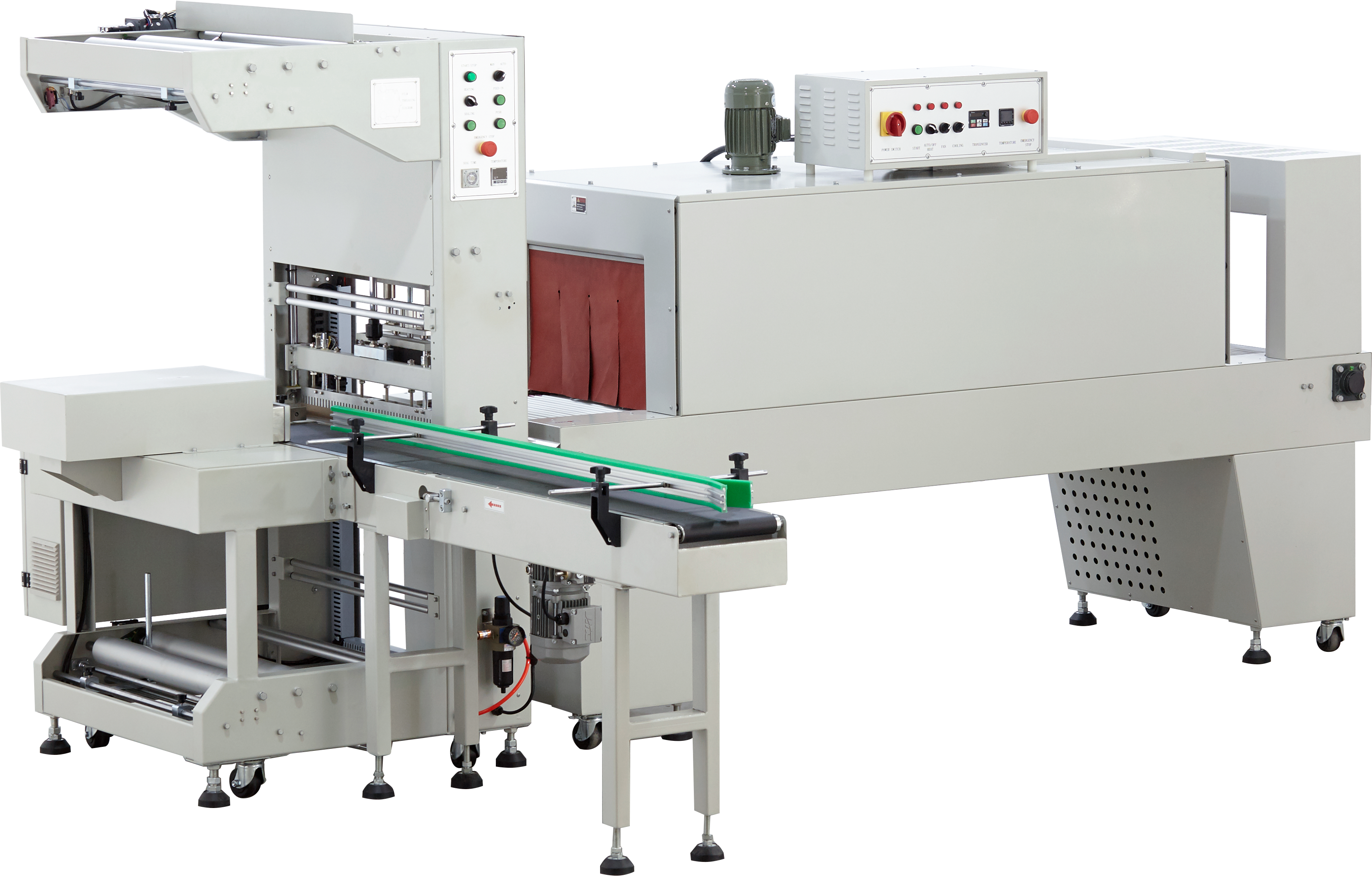

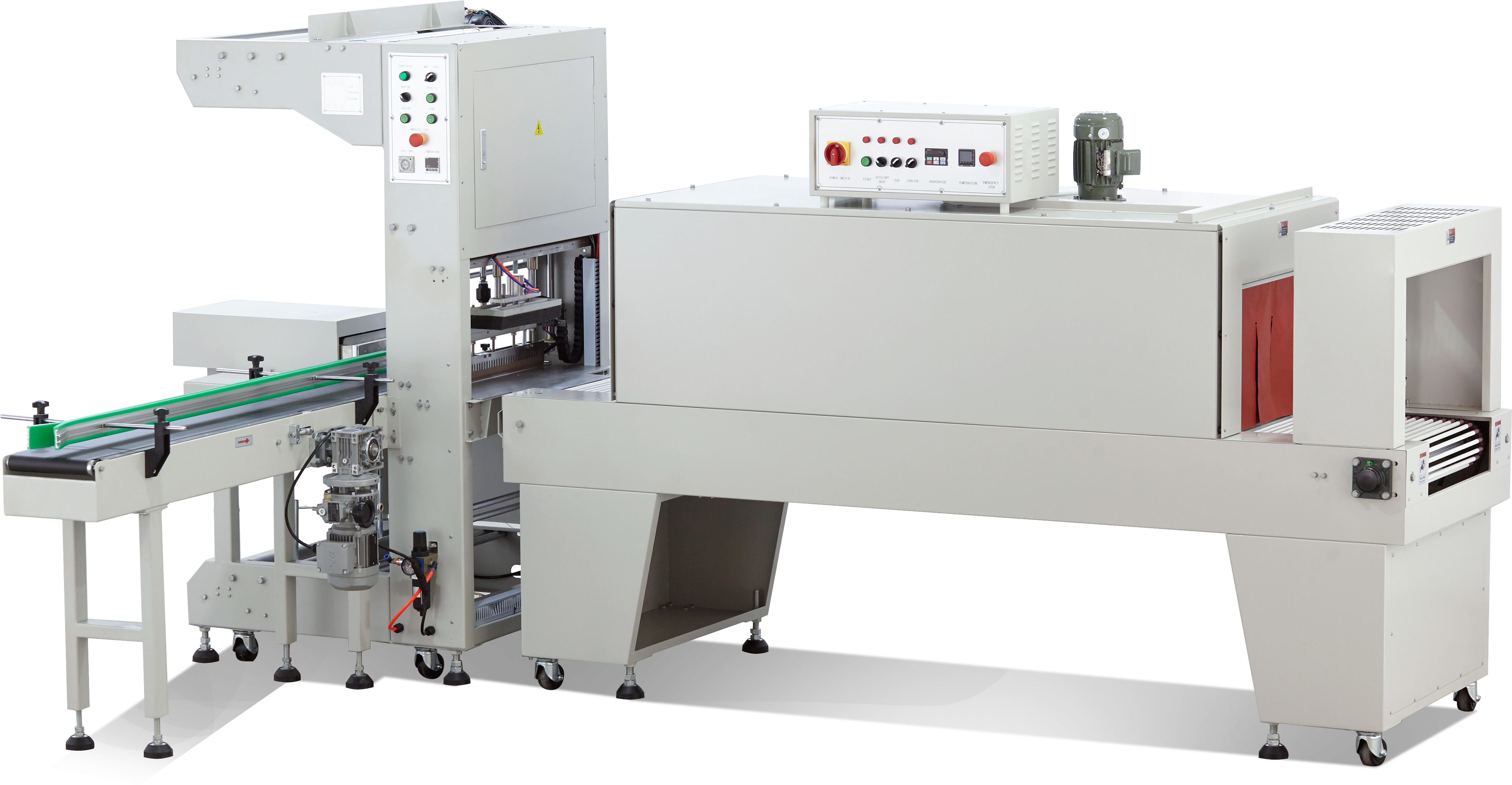

Full-Automatic Cuff-Type Packaging Machine (No Bottom Support) GPL-6030AH + GPS-6040
Category Shrink Sealer-Cutter
The full-automatic cuff-type shrink packaging machine is a fully automatic PE film shrink packaging machine with automatic material arranging function. It is suitable for automatic shrink packaging of combined products without bottom supports, such as mineral water, beverages, daily chemical cleaning products, etc.
Specification
Specification
| Machine Model | GPL-6030AH | GPS-6040 |
| Film | PE | PE |
| Packing Speed | 18pcs/min | 18pcs/min |
| Packing Size | W+H≤650,H≤300 | (L≤500):W+H≤550;W≤400;H≤200 |
| Cutter size / Tunnel size | 700mm | L1800×W600×H400mm |
| Max Temperature | 220°C | 220°C |
| Electrical | 220V/380V 50-60Hz 3 Phase | 220V/380V 50-60Hz 3 Phase |
| Power | 2.5KW | 20KW |
| Max Current | 5.0A | 32A |
| Air Compressing | 5.5-8.5kg/cm³ | ⁄ |
| Table Height | 850+50mm | 850+50mm |
| Machine Size | L2675×W1350×H2000mm | L2830*W980*H1710mm |
| Machine Weight | 600kg | 550kg |
