Automatic Vertical Carton Erector GPK-40E
Category Carton Erector

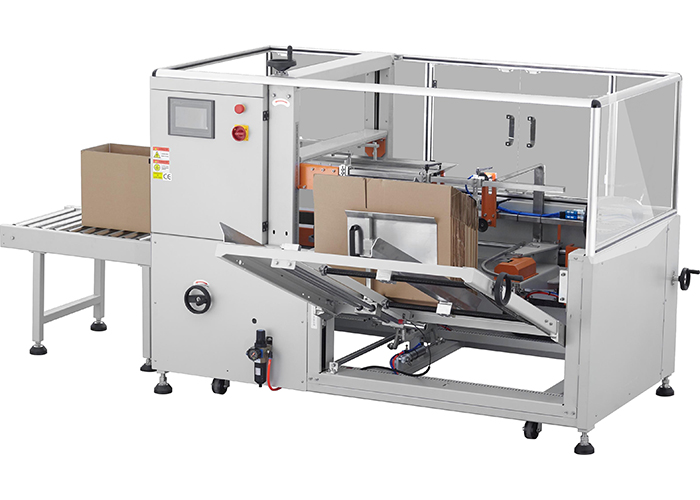

The GPK-40E automatic carton forming and bottom-sealing machine is a vertical carton erector with a speed of 12 cartons per minute. This carton erector has been widely used in various industries such as food, medicine, beverages, tobacco, daily chemicals, and electronics.
Specification
Specification
| Machine Model | GPK-40E |
| Carton Opening Speed | 10-12ctns/min |
| Carton Size | L250-450×W150-400×H100-400mm |
| Power Supply | 220V 50/60Hz 1 Phase |
| Power | 240W |
| Adhesive Tape Width | 55-72mm |
| Air Consumption | 450NL/min |
| Air Compressing | 6-8kg/cm³ |
| Table Height | 620-650 mm |
| Machine Size | L2100×W2100×H1450mm |
| Machine Weight | 450Kg |
| Carton Storage Quantity | 80-100pcs (800-1000mm) |
