Automatic Multifunctional Box Forming Machine(Fruit box machine) JZH-1600L
The machine is mainly used for the production and processing of various outer packaging boxes and cartons, and is suitable for food packaging, fruits and vegetable packaging.
Specification
Specification

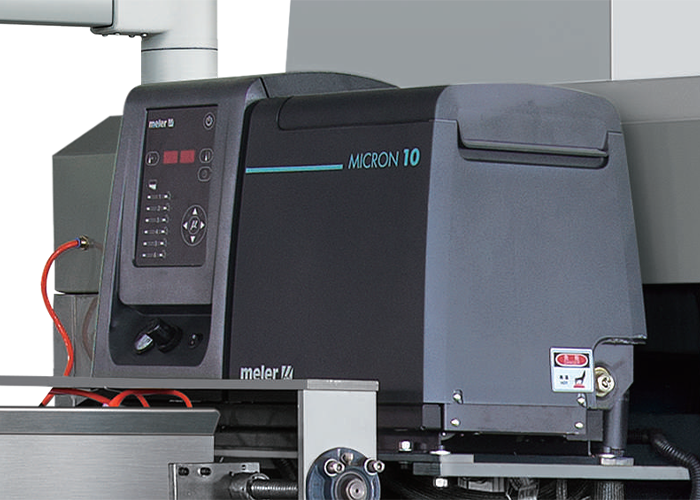

- Use an imported intelligent glue spraying system with automaticglue spraying compensation function.

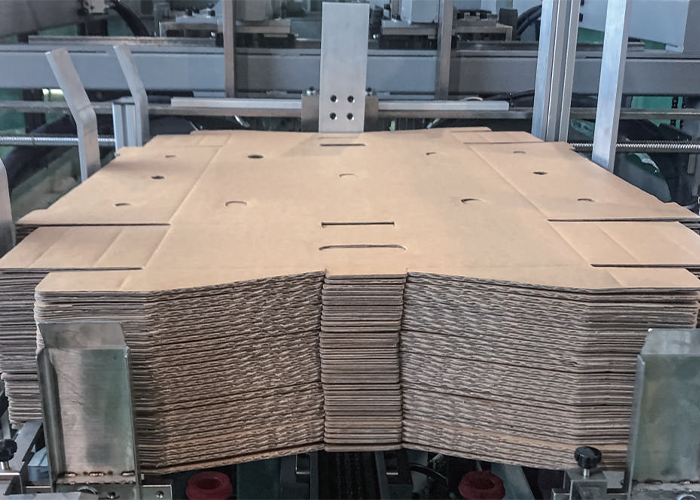

- This machine adopts a vacuum suction type, and the continuousoperation of paper feeding, edge folding, edge pressing, earfolding, and folding forming can be completed in one go.
- Adopting PLC programmable controller, photoelectric trackingsystem, air source detection operation system, touch screenhuman-machine interface, the entire process automation of theconnected cover paper box forming machine is implemented.
- Automatically push the cardboard before and after gluing,reducing the error of photoelectric eye irradiation on thecardboard, making gluing more accurate.
- The infrared security protection system ensures the safetyof personnel operation.
- Automatic fault diagnosis function, automatic quick moldadjustment function, and automatic stacking function.
- Rack cage design, overall processing, combined with grouping.
- The entire machine occupies a small area and has goodstability.

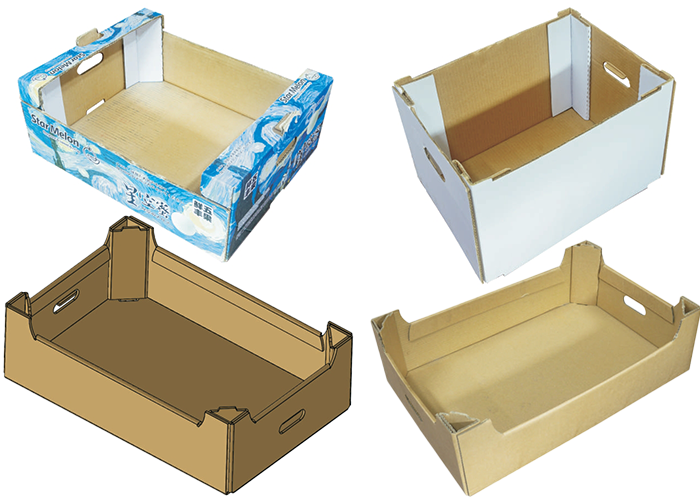

- This machine is designed for the shaping of foldable fruitand vegetable boxes, making the boxes more load-bearing.
Machine Model JZH-1600L Thickness of cardboard Min：1.5mm,Max：6mm Power 380V/50Hz Noise ≤100dB Speed 1200-1800 Pieces/hours Cardboard stacking height 300-400MM Stacked weight 50kg Total power ≈12kw Glue capacity 8L /10L Air source 380L/Minute Air pressure 0.6-0.7MPa Machine weight ≈3000kg Dimensions 5300x1930x2480mm Packaging Boxes Specifications Carton size (L=Length; W=Width; H=Hight) L Min.size 330mm L Max.size 600mm W Min.size 240mm W Max.size 600mm H Min.size 90mm H Max.size 250mm Package Size (L=Length; W=Width) L Min.size 480mm L Max.size 1300mm W Min.size 480mm W Max.size 1100mm
