Automatic Multifunctional Box Forming Machine(Fruit box machine) JZH-1600

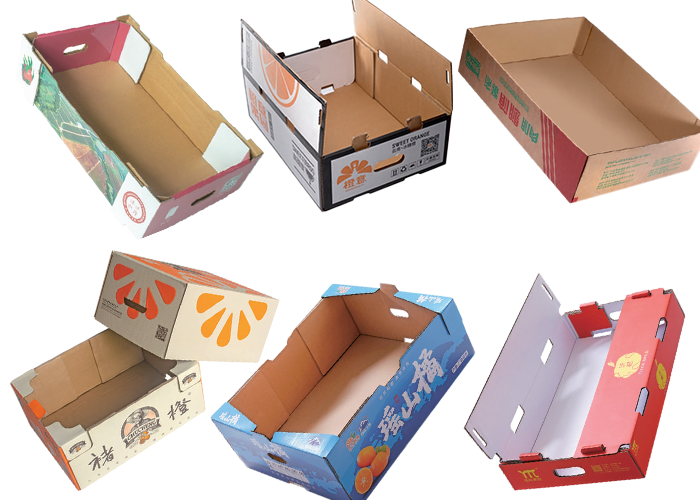

The machine is mainly used for the production and processing of various outer packaging boxes and cartons, and is suitable for food packaging, fruits and vegetable packaging.
Specification
Specification

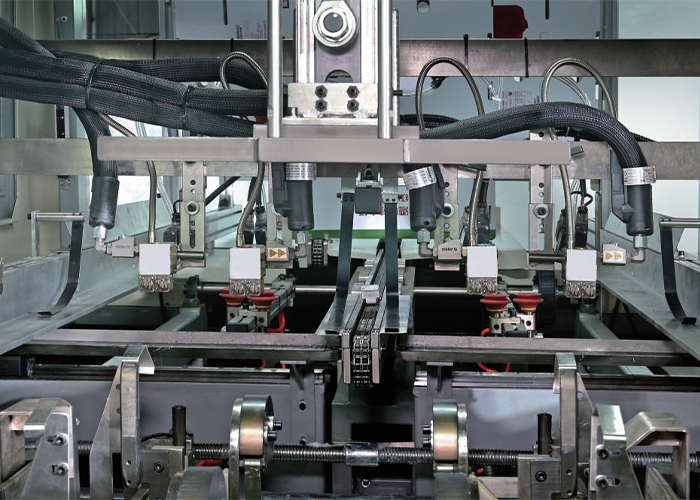

- Imported intelligent glue dispensing system with automatic glue compensation;

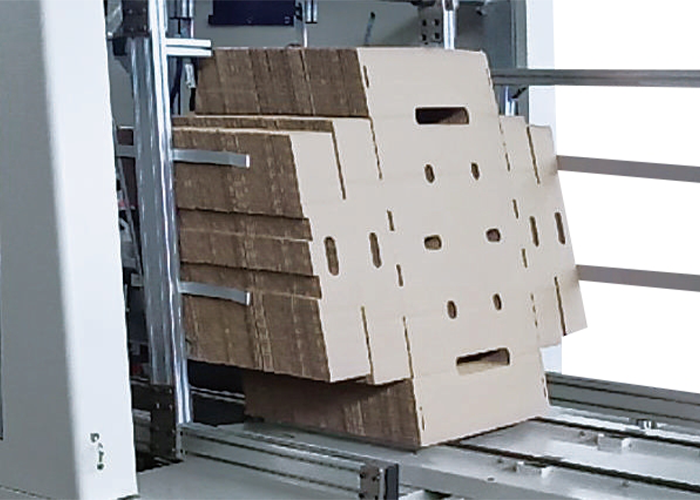

- Vacuum suction type automatic paperboard feeding,and the continuous operation of feeding, wrapping,folding and molding is completed in one time;
- Using PLC programmable controller, photoelectrictracking system, gas source etection and operationsystem, touch screen man-machine interface, andimplementing the whole automation process of theformation of the foldable boxes;
- Automatically push the cardboard to apply gluefront and back, reduce the error of the photoelectriceye to irradiate the cardboard, therefore gluing is more accurate;safety of operation personnel;
- Infrared safety protection system to ensure the
- Automatic fault diagnosis function; Automatic quick mold adjustment function; Automatic box piling.
- Rack cage design, integral processing, grouped combination;
- Small footprint and good stability.
Machine Model JZH-1600 Thickness of cardboard Min：1.5mm,Max：7mm Power 380V/50Hz Noise ≤100dB Speed 1500-1800 Pieces/hours Cardboard stacking height 1200MM Stacked weight 100kg Total power ≈12kw Glue capacity 8L /10L Air source 380L/Minute Air pressure 0.6-0.7MPa Machine weight ≈2300kg Dimensions 5200x4315x2600mm Packaging Boxes Specifications Carton size (L=Length; W=Width; H=Hight) L Min.size 220mm L Max.size 680mm W Min.size 220mm W Max.size 680mm H Min.size 70mm H Max.size 250mm Package Size (L=Length; W=Width) L Min.size 480mm L Max.size 1300mm W Min.size 480mm W Max.size 1000mm
