Automatic Multi-functional Box Folding Machine JZH-1280

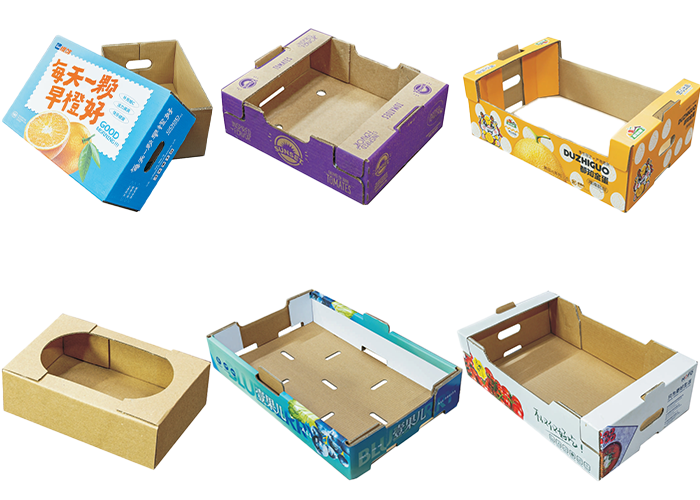

The machine is mainly used for the production and processing of various outer packaging boxes and cartons, and is suitable for food packaging, fruits and vegetable packaging
Specification
Specification
- Use an imported intelligentglue spraying system with automaticglue spraying compensation function.
- This machine adopts a vacuum suction type, and the continuousoperation of paper feeding, edge folding, edge pressing, earfolding, and folding forming can be completed in one go.
- Adopting PLC programmable controller, photoelectric trackingsystem, air source detection operation system, touch screenhuman-machine interface, the entire process automation of theconnected cover paper box forming machine is implemented.
- Automatically push the cardboard before and after gluing,reducing the error of photoelectric eye irradiation on thecardboard, making gluing more accurate.
- The infrared security protection system ensures the safetyof personnel operation.
- Automatic fault diagnosis function, automatic quick moldadjustment function, and automatic stacking function.
- Rack cage design, overall processing, combined with grouping.
- The entire machine occupies a small area and has goodstability.
- This machine is designed for the shaping of foldable fruitand vegetable boxes, making the boxes more load-bearing.
Machine Model JZH-1280 Thickness of cardboard Min：1.5mm,Max：5mm Power 380V/50Hz Noise ≤100dB Speed 1200-3000 Pieces/hours Cardboard stacking height 300-500mm Stacked weight 30kg Total power ≈12kw Glue capacity 8L /10L Air source 380L/Minute Air pressure 0.6-0.7MPa Machine weight 2000kg Dimensions 2950x1820x2500mm Packaging Boxes Specifications Carton size (L=Length; W=Width; H=Hight) L Min.size 180mm L Max.size 650mm W Min.size 180mm W Max.size 470mm H Min.size 60mm H Max.size 230mm Package Size (L=Length; W=Width) L Min.size 500mm L Max.size 1100mm W Min.size 370mm W Max.size 1000mm
