Automatic Multi-functional Box Folding Machine JZH-1200

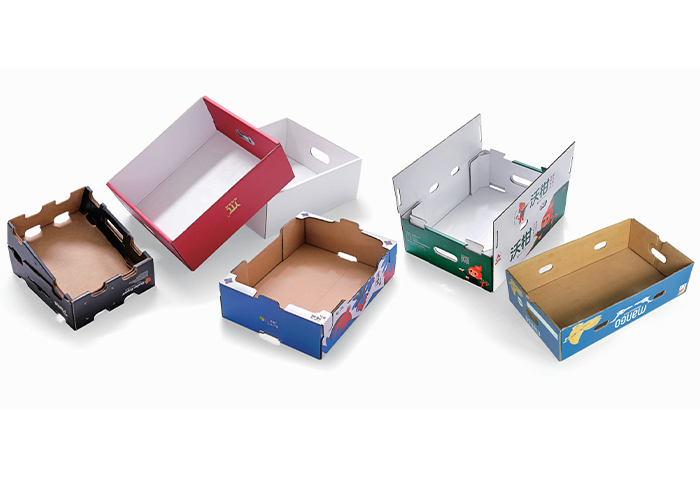

In addition to making traditional boxes, machine canalso make other palletizing boxes, as well as the foldingpackaging boxes without glue, it is suitable for foodpackaging boxes; fruit/vegetable packaging boxes andother product boxes and etc.
Specification
Specification

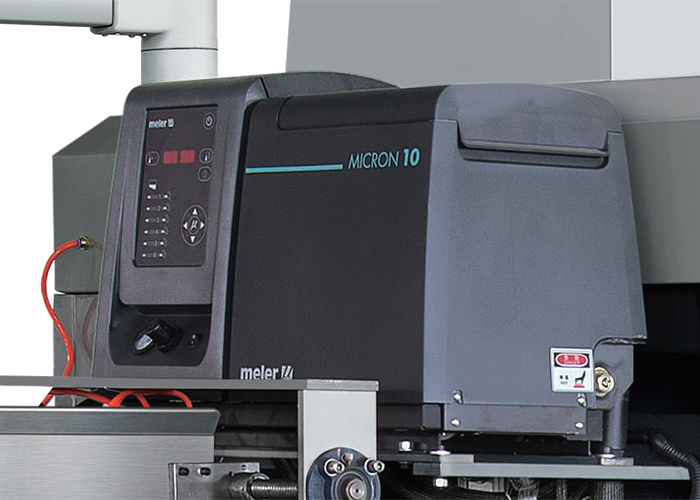

- Imported glue spraying system, with automatic glue spraying compensation function;
- Add the folding knives device, can do various boxes

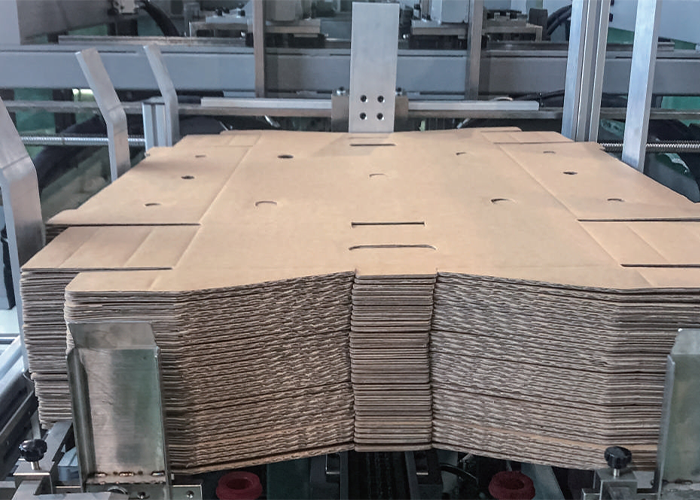

- cardboard adopt automatic feeding with bottom suction,continuous feeding, forming, conveying and stacking at one time;
- Adopt moving controller, photoelectric tracking system,gas source detection system, human-Machine interface,automate the whole process of box forming
- Fiber positioning for folding and gluing to reduce gluing,errors. servo pushes the cardboard with glue on front and back to reduce photoelectric eyes error, which can make glue more ccurate.
- Infrared safety protection system to ensure the safety of personnel operation;grouping combination;
- Automatic fault diagnosis function;
- Quick mold change adjustment device;
- Cage design of machine frame, integral processing,
- The whole machine occupies a small area and has goodstability.
Machine Model JZH-1200 Thickness of cardboard Min：1.5mm,Max：5mm Power 380V/50Hz Noise ≤100dB Speed 1200-3000 Pieces/hours Cardboard stacking height 300-500mm Stacked weight 30kg Total power ≈12kw Glue capacity 8L /10L Air source 380L/Minute Air pressure 0.6-0.7MPa Machine weight 1600kg Dimensions 2750x1650x2500mm Packaging Boxes Specifications Carton size (L=Length; W=Width; H=Hight) L Min.size 180mm L Max.size 650mm W Min.size 180mm W Max.size 470mm H Min.size 60mm H Max.size 230mm Package Size (L=Length; W=Width) L Min.size 500mm L Max.size 1100mm W Min.size 370mm W Max.size 1000mm
