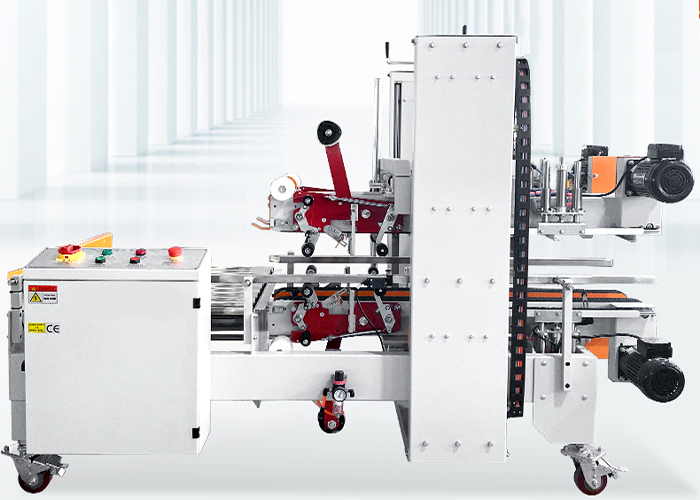

Automatic Corner Sealing Machine GPG-755E
Category Carton sealer
Automatic Four-corner Carton Sealer. After completing middle top-and-bottom sealing by the front-end sealer, the carton enters the 90-degree turning mechanism. Upon photoelectric sensing, the pusher plate pushes the carton to the corner-sealing station, which seals four top and bottom corners simultaneously with high efficiency. Two rows of brushes smooth the tape to cling tightly to the carton, delivering wrinkle-free folded corners with attractive and firm sealing. It is suitable for customers and manufacturers with high outer-packaging requirements, especially for export products and food industry. Widely used in food, pharmaceutical, beverage, tobacco, daily chemical, automobile, cable, electronics and other industries.
Specification
Specification
| Machine Model | GPG-755E |
| Conveyor speed | 6-8PCS/min |
| Carton Size | L320-700mm×W200-500mm×H180-500mm |
| Power Supply | 220V 50/60Hz 1Phase |
| Power | 1020W |
| Adhesive Tape Width | 60-72mm |
| Air Consumption | 220NL/min |
| Air Compressing | 0.6Mpa |
| Table Height | 600-650mm |
| Machine Size | L1920×W1330×H1520mm |
| Machine Weight | 450kg |
