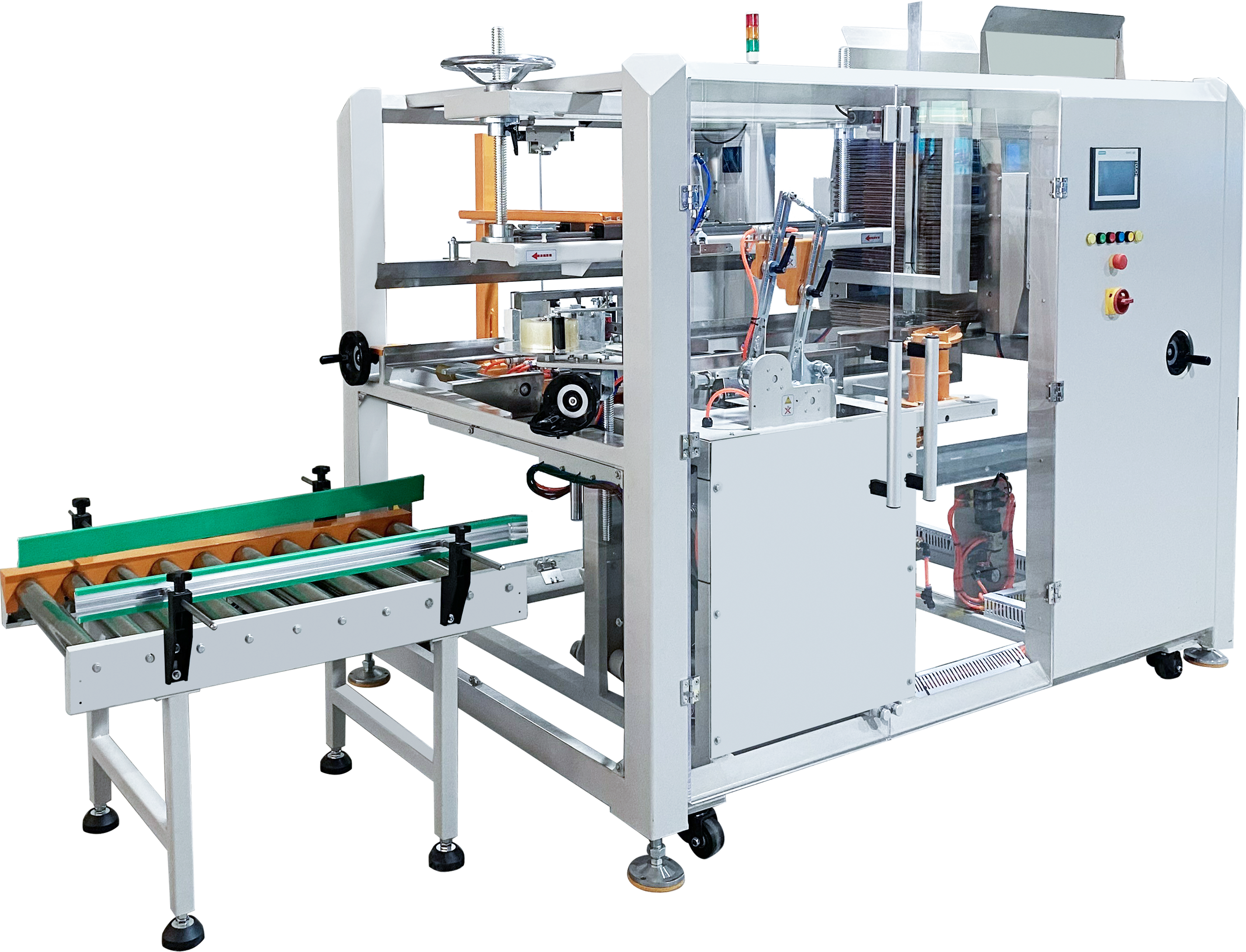

Automatic carton erector GPK-40H30I
Category Carton Erector
The GPK-40H30I high-speed carton erector embodies years of practical technical expertise. It employs a cam-and-linkage drive system to govern all machine movements, guaranteeing rapid, precise, and stable operation. Designed for robustness and cost-effectiveness, the machine is compact, user-friendly, and easy to adjust. It is ideally suited for high-volume production lines, serving a wide range of industries including printing, packaging (color boxes, greeting cards), pharmaceuticals, electronics, FMCG, cosmetics, automotive parts, hardware, and food.
Specification
Specification
| Machine Model | GPK-40H30I |
| Carton Opening Speed | 30 ctns/min |
| Carton Size | L240-500xW190-400xH120-400mm |
| Power Supply | 220V 50HZ 1 Phase |
| Power | 1000W |
| Adhesive Tape Width | 50-60mm |
| Carton Storage Quantity | 80pcs (800mm) |
| Air Consumption | 300NL/min |
| Air Compressing | 6-8kg/cm³ |
| Table Height | 980+30mm |
| Machine Size | L2160xW1450xH1670mm |
| Machine Weight | 900Kg |
